TDS15200 Airco Software license

The TDS15200 is a TELETASK license for full integration with an Air-conditioning system, this license is the same for different Air-conditioning brands (Daikin, Mitsuhishi Electric). The integration is possible with the DoIP system, this means that the TELETASK central unit and the controller of the air conditioner system are connected over Ethernet.
For full use the TDS15200 license needs to be activated. For test or demo purposes this license can be used in ‘TEST Mode’ for three days.

The TDS15200 can be used to integrate with an “Intelligent gateway” to the AC system. This means that the temperature measurement is done by the Airco system. The TELETASK DoIP central unit reads the measured temperatures from the gateway, and sends the desired temperature, mode and speed settings to the gateway, which controls the different zones.

The AC can be controlled on both the AC system and the TELETASK system.

A schematic drawing of the integration is given below:

Daikin Integration

The Integration with the DAIKIN AC system is done with the Daikin ‘intelligent Touch controller’ (iTouch, DCS601C72) or the Daikin 'Intelligent Touch Manager' (DCM601A51)
For the iTouch controller you need also the ‘Daikin Open Protocol License’ (DCS007A51), this will open port 80
For the iTouch manager you need the license DCM007A51, this will open port 8081

Up to 128 DAIKIN indoor units can be controlled with a Daikin iTouch. So in PROSOFT Suite an extra 128 sensor zones are available accordingly.

All Daikin systems that can be controlled from the iTouch can be integrated with the TELETASK system e.g. Daikin VRII, Daikin VRIII, Daikin SKY AIR, Daikin HRV,…

Remark: some Daikin systems need optional plug in boards to connect them with the iTouch, connect your Daikin supplier for detailed information.
Remark: not all Daikin units are 100% compatible with iTouch.
Remark: Daikin touch panels need to be installed to ensure normal operation of the HVAC installation.

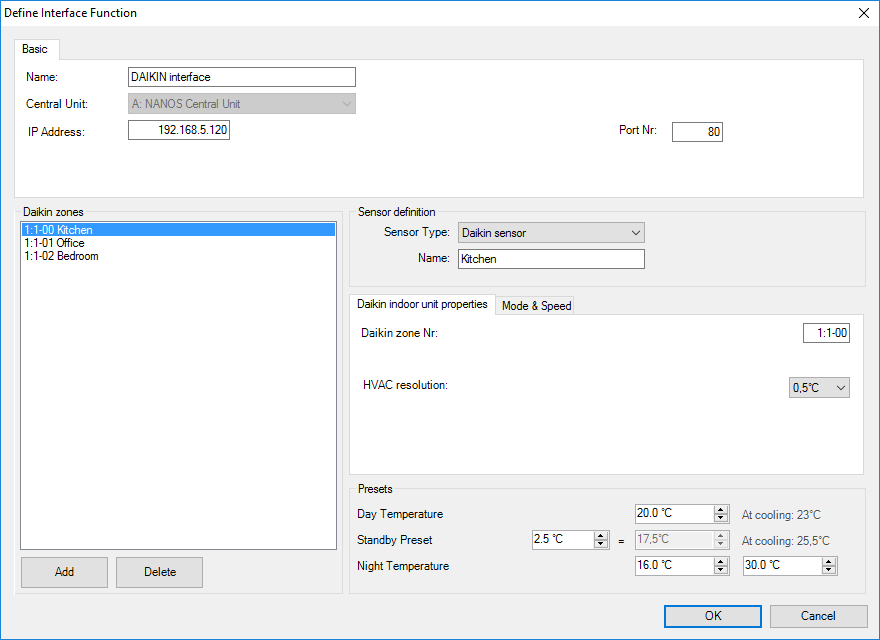

Configuring a Daikin Interface in PROSOFT Suite

To add a DAIKIN interface to your TELETASK system, follow these steps:

  • In PROSOFT Suite, go to the menu "Edit", "Inputs"
  • Choose "New", "Sensor or Heat/Cool Interface"
  • Select "DAIKIN interface" from the list of interfaces
  • Enter the correct IP address and IP port number (depending Daikin license) of the Daikin iTouch unit
  • Add all the indoor units as used in the DAIKIN iTouch unit and give each zone the correct DAIKIN zone number and name (we advise to use the same names in iTouch and PROSOFT Suite).
  • Set the HVAC resolution: see Chapter ‘Extra parameters for external HVAC systems.
  • Mode & Speed: see Chapter ‘Extra parameters for external HVAC systems.
  • Enter the presets for "Day", "Night" and "Standby"
  • Save your .nbt file
  • Transmit the nbt file to your central unit


Mitsubishi Electric Integration

Remark: There are two different Mitsubishi Air-conditioning brands on the market: ‘Mitsubishi Electric’ and ‘Mitsubishi heavy Industries’. Only the ‘Mitsubishi Electric’ Air-conditioning can be integrated with the TELETASK system.

The integration with the Mitsubishi Electric air-conditioning system is done with the MITSUBISHI Electric Ethernet gateway AG150 or GB50.

With both these devices 50 zones can be controlled, so an extra 50 zones are available in PROSOFT Suite.

Configuring a Mitsubishi Electric Interface in PROSOFT Suite

  • To add a Mitsubishi Electric interface to your TELETASK system, follow these steps:
  • In PROSOFT Suite, go to the menu "Edit", "Inputs"
  • Choose "New", "Sensor or Heat/Cool Interface"
  • Select "Mitsubishi Electric interface" from the list of interfaces
  • Enter the correct IP address and IP port number of the Mitsubishi Electric Ethernet Gateway.
  • Add all the indoor units as used in the Mitsubishi Electric Ethernet Gateway and give each zone the correct Mitsubishi Electric group number and name.
  • Set the HVAC resolution: see Chapter ‘Extra parameters for external HVAC systems.
  • Mode & Speed: see Chapter ‘Extra parameters for external HVAC systems.
  • Enter the presets for "Day", "Night" and "Standby"
  • Save your .nbt file
  • Transmit the nbt file to your central unit
