1. Introduction
The ‘DOMUS/PICOS+’ license is used to increase your DOMUS/PICOS installation capacity from a maximum of 44 outputs to a maximum of 76 outputs. (see overview below).
Starting from September 2024, the DOMUS/PICOS Central Unit will support up to 24 dimmers with the TDS15009 license.
2. Overview
OUTPUTS on basic DOMUS/PICOS TDS10009: max. total 44
| Relays | 16 | 8 (1x TDS13510 or TDS13512 or TDS13611) | 24 | ||
| Dimmers | 4 / 0 | 8 / 12 (1x TDS13611 or TDS13610 or TDS13621***) | 12 | ||
| Motors | 0**** | 8 (2x TDS13525 or TDS13526) | 8 | ||
OUTPUTS with DOMUS/PICOS+ license TDS15009: max. total 76
| Relays | 16 | 24 (3 x TDS13510 or TDS13512 or TDS13611) | 40 | ||
| Dimmers | 4 / 0 | 20 / 24 (e.g. 6 x power dimmer TDS13634 or TDS13644 or 24 x DALI addresses) | 24 | ||
| Motors | 0**** | 12 (3x TDS13525 or TDS13526) | 12 | ||
(*) A DOMUS or PICOS installation can be extended with 9 additional DoIP central units (up to 4540 outputs).
(** ) The AUTOBUS has a capacity of up to 31 interfaces (one physical interface may occupy more than one address).
(***) The TDS13621 interface is limited to 12 DALI/DMX output channels or to 24 with TDS15009 license.
(****) The internal relay outputs of the DOMUS/PICOS can also be used as motor controls (curtains, shades, …) (2 relays to be used per motor).
3. How to use 24 dimmers on DOMUS/PICOS+ license on a BUS

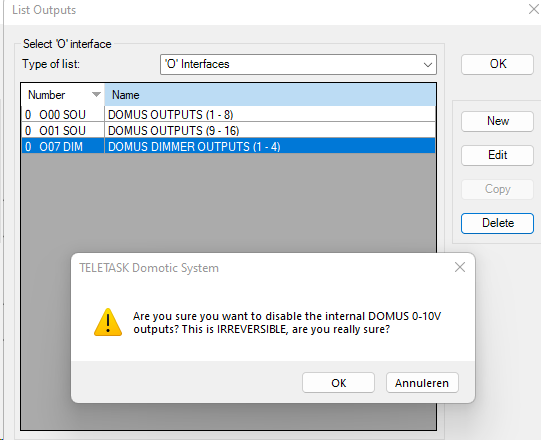

With the DOMUS Extension License TDS15009 and deleting the dimmer outputs (1-4) as illustrated above you will have in total 24 dimmers on the bus, (dimmers like DALI) TDS13621(DALI/DSI/DMX Interface).
Possible in PROSOFT 4.0.3 (or higher) or PROSOFT 5.
4. Activation
- 1. You’ll need to order physical license code (in envelope) with product code TDS15009.
- 2. To use this license, you must activate it first. Therefore, you log onto your TELETASK Professional account at www.teletask.be, download the activation file and import this file into your PROSOFT project.
- a. Go to teletask.be -> professional -> License activation (TELETASK Cloud) -> login with your (professional) TELETASK Cloud Account by entering e-mail and password
- b. Select 15009 – DOMUS/PICOS extension license + enter code from the envelope
- c. Select ‘10309 - DOMUS’ central unit + enter serial number (9 characters, see small sticker on the central unit)
- d. Download activation file
- 3. Open PROSOFT
- a. Import the activation file via ‘Extra’ -> ‘Licenses’ -> ‘Import activation file’
- b. Now you can add additional outputs to the central unit via PROSOFT and connect physical components.
