TDS13632 and TDS13634: PWM LED Dimmers

General

The TDS13632 (2 channel) and TDS13634 (4 channel) are PWM dimmers to control DC dimmable LED light systems (e.g. LED strips). The interface can dim any monochrome or colour LED system, from cold to warm light including RGB and RGBW for standard and high end residential and professional applications.

Configuring a PWM dimmer interface

To add a TDS13632 or TDS13634 PWM interface to your TELETASK system, follow these steps:

  • In PROSOFT Suite, go to the menu "Edit", "Outputs"
  • Choose "New"
  • Select "TDS13632 or TDS13634" from the list of interfaces
  • Enter a Name for the dimmer interface
  • Enter the AUTOBUS address for the interface
  • Enter a name for each dimmer output(channel) that will be used

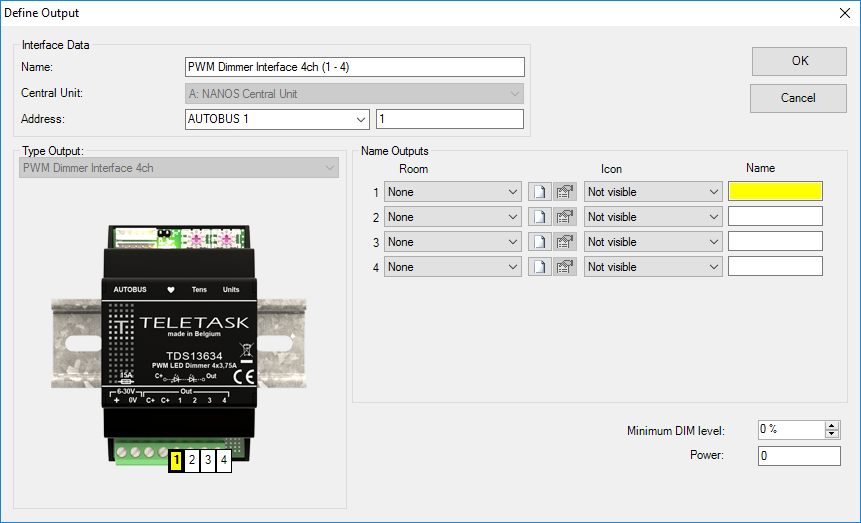

The different available parameters

TDS13634

Rooms
Room selection. For more info, go to page The rooms.
Icon
Visualization category of the output.
Name
Name of the output.
Minimum DIM level
Specifies the initial start dim percentage. the minimum dim level will recalculate the actual dimmer values (percentage range beween 0 and 40).
