TDS13609: Dimmer interface 8x 0-10V

The TDS13609 Dimmer interface is an output interface that can be used to control eight 0-10V dimmable power dimmers (or 0-10V LED drivers)

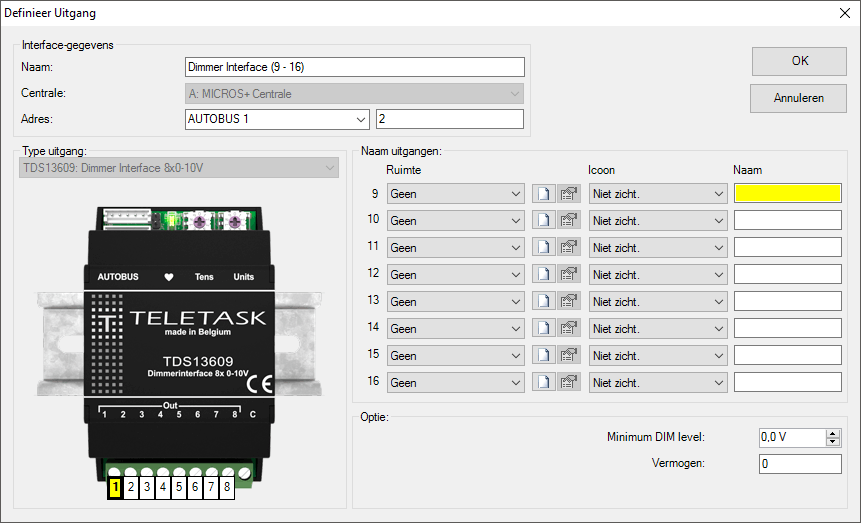

For some lights, dimming only works between a minimum voltage (e.g. 2.5V) and 10V. On the TDS13609 you can therefore specify a ‘Minimum DIM level’ on each output individually. The Minimum DIM level can be set from 0 to 4V.

E.g. if the ’Minimum DIM level’ is set to2.5V, the voltage on the output of the TDS13609 will be 2.5V for 1% dimming.
