Comelit

Test between OPUS and Comelit

Tested Units

IKALL in a demo set

  • Set includes 1456G (3rd party gateway), gateway art. 1456, power supply art. 1441 and the IKALL outdoor unit.

Version 1.3.1 is necessary for the gateway and the external unit

SETUP: The 1456G gateway is connected to the 1456 gateway and the last one is connected to the local test network. The OPUS was also connected to the same network.

OPUS Audio Configuration

  • SIP Speaker scaling 7
  • SIP Microphone scaling 20
  • Voice 80%

SIP Setup

Comelit unit doesn't have an internal SIP server. We have tested with our SIP server (UNIFY Openscape business ) as the external SIP server.
We also tested early media with a YeaStar SIP server and with Direct SIP (the UNIFY doesn't support Early media)

Audio test


You can only set-up two audio codecs in the ViP Manager, they are both working:

  • PCMA
  • PCMU


We had to set up the following setting at the Comelit units to have satisfying results (ViP Manager, External unit, Settings)

  • Loudspeaker Volume: 5
  • Mic volume: 5
  • Call tone volume: 3
  • Voice message volume: 3
  • Paging volume: 7


Summary
At the beginning and very end of the communication, there is a cracking sound. The sound is fine but hollow.

DTMF

DTMF was found working to open the door.

Video

Available URL's:


Summary
There is also an RTSP stream available from the gateway module, but it's better to use the RTSP stream from the camera directly, you also have to disable the setting 'Stream video via RTSP' in the gateway to get Early media working

Direct SIP Setup

In the Third-party module (1456G) you have to make the following settings:

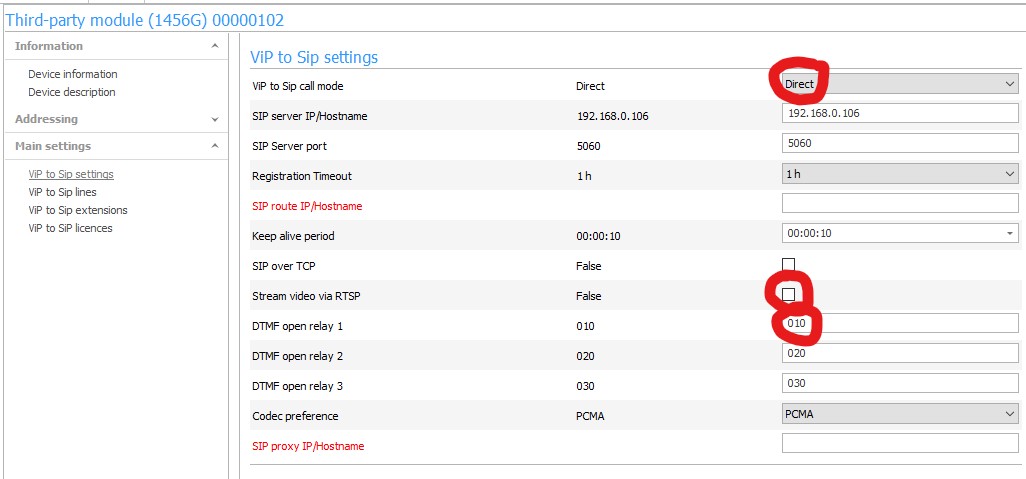

ViP to Sip setting:

Set ViP to Sip call mode to 'Direct'
If you want to use Early Media also switch off 'Stream video via RTSP'
Comelit 1456G ViPtoSipSettings

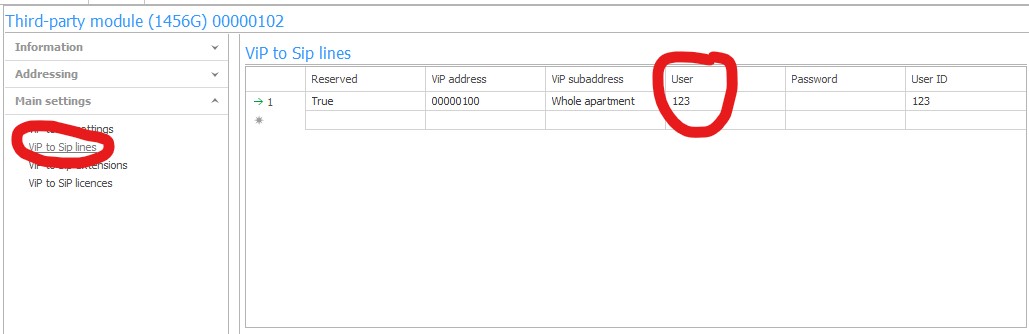

ViP to Sip lines:

Set User and User ID to the SIP IP you have configured in PROSOFT
Comelit 1456G ViPtoSipLines

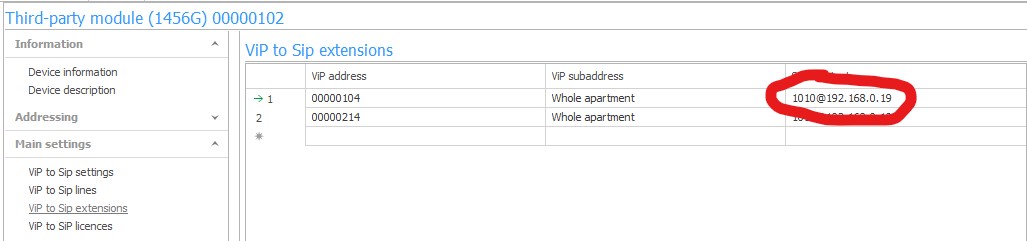

ViP to Sip extension:

Set as Sip recipient the IP address of the OPUS
Comelit 1456G ViPtoSipExtensions

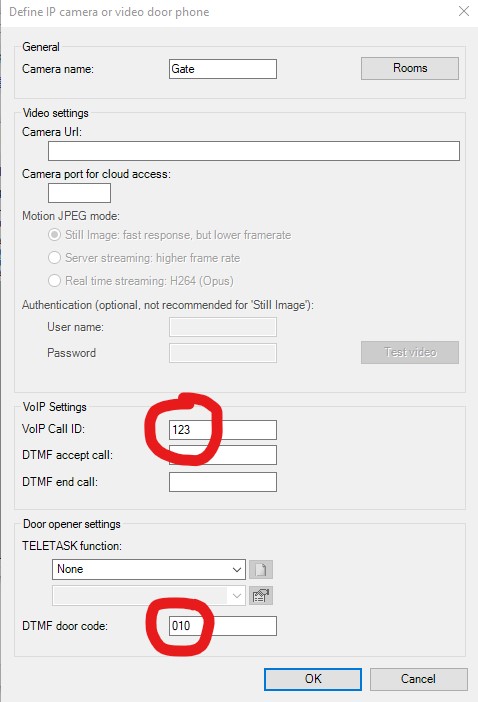

PROSOFT

Don't configure a URL, only setup the SIP Call ID and the door opener function, example DTMF code 010 for Comelit relay 1
Camera VoIPID+DTMF
