TDS12301: AD Cookie

The AD cookie is a cookie that supports one Analog input and one digital input. which makes it ideal for adding non teletask sensors easy on the autobus. A typical example would be to integrate a motion sensor that has an integrated light sensor into the teletask system.

AD Cookie Configuration in PROSOFT

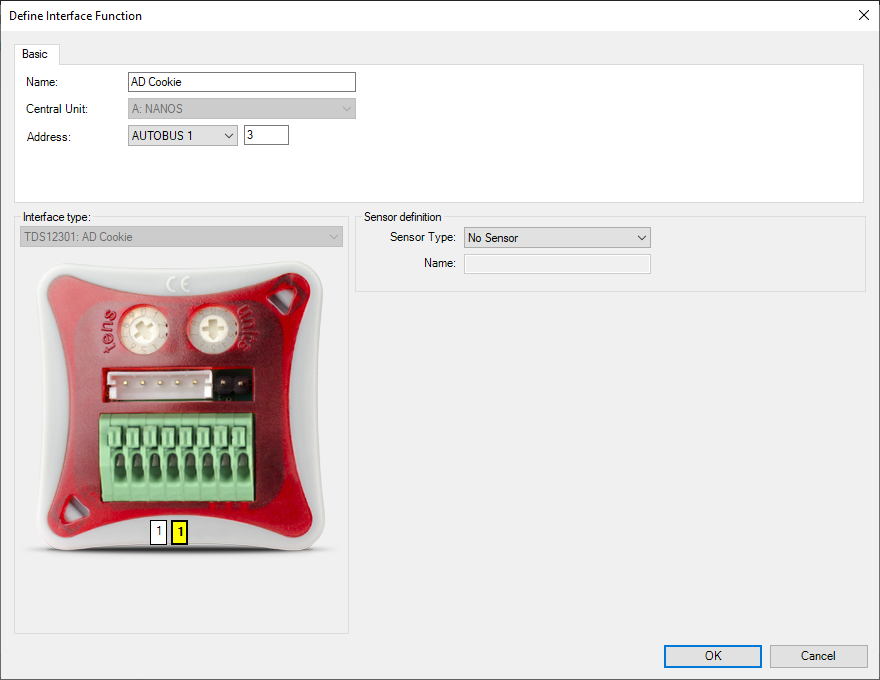

First you need to add the AD Cookie as an input interface in the PROSOFT – inputs menu ( click ‘edit’ – ‘inputs’ – ‘new’ – ‘TDS12301’ – ‘OK’). Then you can custom configure the AD Cookie.
ADCookie01
The left input is the digital input and can be configured by clicking on the left input on the image.
The right input is the analog input and can be configured by clicking on the right--- input on the image.

Configuration of the digital input

ADCookie02
The digital input is configured as any other digital input on a Teletask interface.
Digital Input interfaces – Specific parameters

Configuration of the analog input

ADCookie03

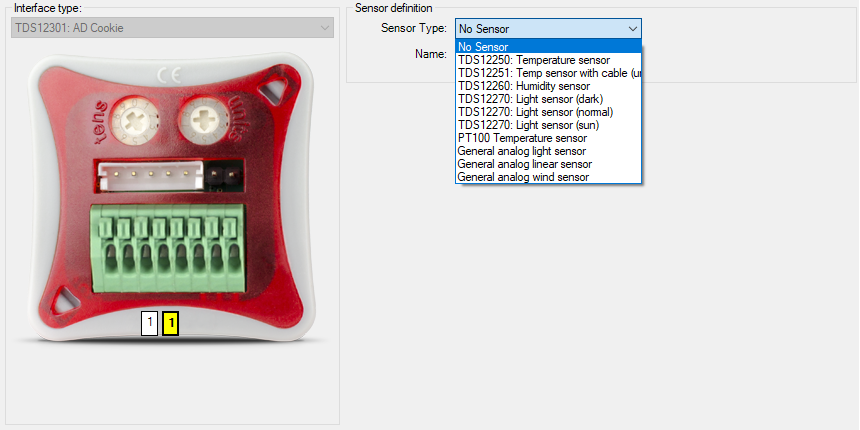

Sensor Type
this parameter defines the type of sensor which is connected to the concerning analogue input. There are several different types of sensors which can be connected.
TDS12250
Teletask temperature sensor to measure the temperature in a room
TDS12251
Teletask temperature sensor with cable, used for under floor measurements
TDS12260
Select this sensor if you have connected a TELETASK humidity sensor TDS12260 to your analogue input.
TDS12270
Light sensor, the difference between the dark,normal and sun options is that each of them has a more accurate range either for lower(dark) values or highter(light) values.
PT100
Temperature sensor
General analog light sensor,General analog linear sensor,General wind sensor
Analog sensors that work linear. When selecting the light sensor the Teletask system knows that it is measuring Lux values that can by used by CLC.


Please visit Analogue input interface – Specific parameters for more details.
