Overview list of 'I' Interfaces of your domotics project

An overview list of the 'I' interfaces, the different inputs, sensors and the audio zones in your project are easily overviewed in the different available lists. These lists are shown in the 'list interfaces' window. Click in the main PROSOFT menu 'Edit', 'Inputs and others' and select the desired on-screen overview list.
There are different lists which can be displayed:

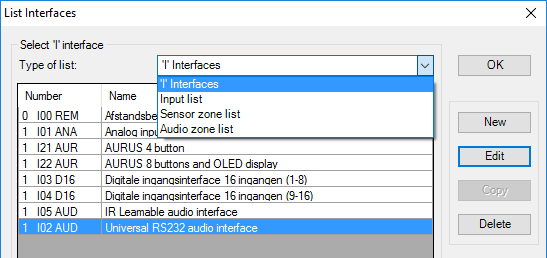

List type 'I' Interfaces:

The list contains:

This list gives you an overview of the 'I' interfaces of your TELETASK project, conveniently arranged. In this list the next items are displayed:

'Address
In the first part of the first column there is the software address of the concerned 'I' interface. PROSOFT adds the letter 'I' to remark that it concerns an input interface.
Group
In the second part of the first column the input interface group abbreviation is displayed.
Description
the name which you have been giving to the interface.

Actions:

When the desired 'I' interface is found, you can select it and the line becomes blue when selected. The following actions can be taken starting from this list:

New
Click on the 'New' button to add an extra 'I' interface to your project.
Edit
Click on the 'Edit' button to open the 'Define Interface Function' window where you can change the settings of that interface.
Copy
there will be made a copy of the selected interface. All settings, except for the address, are kept.
Remove
Click to remove the interface from your project. Be careful, there is no undo button for this action, but PROSOFT will ask for a confirmation before it is finally removed.

List type 'Input list'

The list contains:

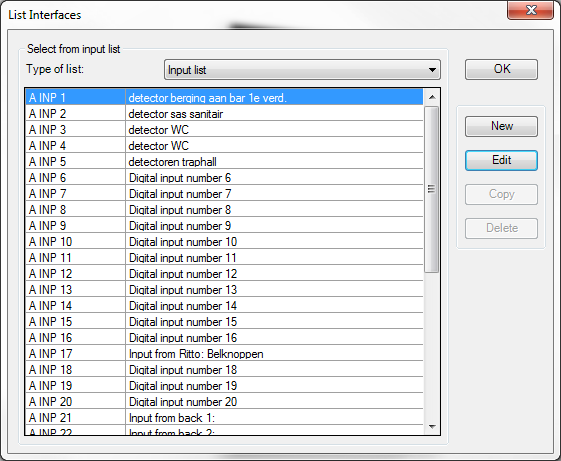

This list gives an overview of the TELETASK individual digital inputs used in your project. Next items are displayed in this list:

INP
this abbreviation defines that the item displayed on that line is an input.
Number
the input number is divided into two parts. The first part is the AUTOBUS address of the digital input interface. The second part is the individual input number on that input interface (for example '4' is the fourth input of 8 or 16).
Description
contains the name you have been giving to this individual input...

Actions:

When the desired input is found, you can select it by clicking on it and it will turn blue. The following actions can be done after selecting the input:

New
to add an extra input to the project.
It will be necessary to add a new 'I' interface here before you can add an individual input.
Edit
Click on the 'Edit' button to go to the 'Define Interface Function' window to be able to change the parameters of the individual input.

List type 'Sensor Zone' and 'Audio Zone'

The list contains:

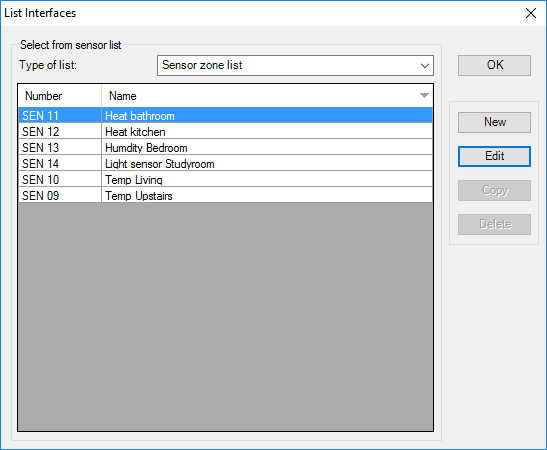

These two lists give you an overview of all sensors and audio zones in your TELETASK domotics project. You can find the following information in both these lists:

Type
defines whether it concerns a sensor zone ('SEN') or audio zone ('AZN').
Number
shows the number which was given to the sensor or the audio zone.
Description
contains the name you have been giving to the sensor or audio zone.

Actions

When the desired sensor or audio zone is located, you can select it by clicking on it and it will turn blue to confirm that you have selected that line. The following actions can be done in this case:

New
to enter an additional sensor or audio zone.
It will also be necessary to define a new 'I' interface here.
Edit
Click on the 'Edit' button to change the parameters of a sensor or audio zone.
