DIVUS Circle
Tested Units
- DIVUS Circle small
- CIRCLE Version 1.13.0 (Necessary for RTSP stream)
SETUP: Devices were connected to the local test network via a POE switch. The OPUS was also connected to the same network in a different room.
OPUS Sound settings
- Voice volume 80%
- SIP Speaker scaling 8
- SIP Microphone scaling 20
SIP Setup
You can use the CIRCLE with an external SIP server or with the internal SIP server.
The internal SIP server supports in total four indoor units like OPUS.
There is no support for Direct SIP or a video stream from SIP.
CIRCLE Audio setup
Codec
No information available
Volume
For all settings 14 was used
DTMF
No information available
Summary
Good sound quality.
Video & Available URL's
- RTSP/H264 stream: rtsp://192.168.0.113/av1

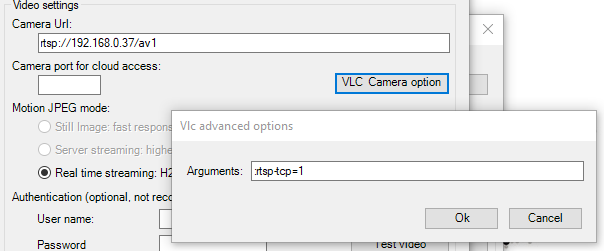

REMARK: to get the RTSP stream working you have to enter additional VLC arguments in PROSOFT for the 'camera'
:rtsp-tcp=1
