Dimmers

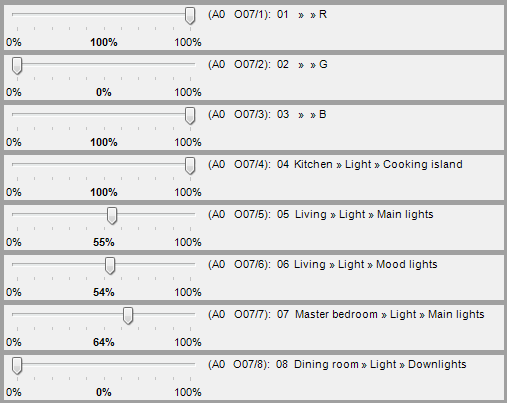

This shows the state for each Analogue Output. A fader shows the state in percentages.
Clicking left or right from the fader position will set the fader 10% lower or higher than the current percentage. Slide the fader into a new position is also possible.
A red cross on top of the fader indicates that the Central unit is not sure about the state of the Analogue output, the fader position will indicate how the output is expected to be. Additional error messages indicated in red will tell you more about the error.
